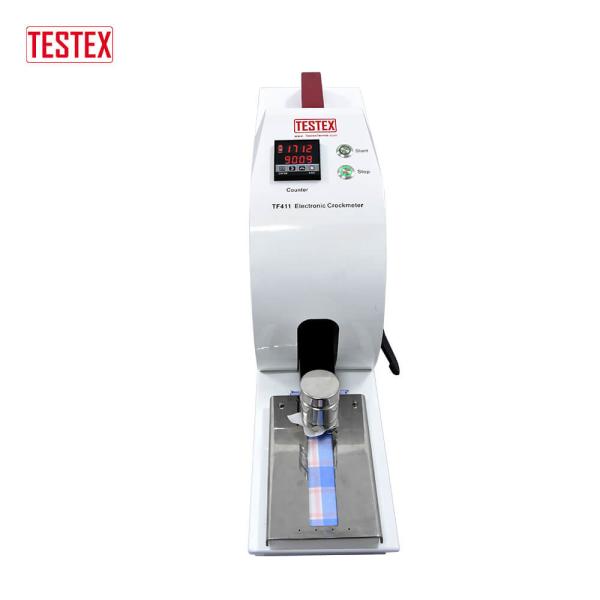

Automatically Stop Electronic Crockmeter with Precision Slide Rail 30 kg

Automatically Stop Electronic Crockmeter with Precision Slide Rail 30 kg​

Application

Electronic Crockmeter: This figures out the color fastness of textiles to dry or wet rubbing. A pinned acrylic sample holder makes sure of an instant sample mounting and repetition of results. Crockmeter Fitted with a galvanized electronic counter for strokes up to 999,999 times.

Specifications

1. Rubbing head: 16 mm

2. Vertical pressure: 9N ± 10%

3. Rubbing stroke: 104 ± 3 mm

4. Counter: 1 ~ 999,999 times, automatically stop

Features

• Easy lift design makes it easy to change either Abradants or Specimens.

• Bigger size specimen brings even pressure on the sample, getting rid of the wrinkles when rubbing.

• Unique Handle design makes this crockmeter a real portable machine and friendly to female operators.

• The cover is shielded to prevent dust and other debris from falling into the instrument and prolonging the service life.

• The precision slide rail ensures the linear movement of the friction rod and the friction finger, avoiding the uneven staining test result.

• Parts such as switches, buttons and counting meters are imported from the US and Japan, meet strict test standards, and have stable performance.

​

Abradants

Different croking test method defines different testing abradants requirement, take AATCC Test Method 8 for example, A AATCC crocking cloth should meet the following specifications:

Included Accessories

• AATCC rubbing clothing 1 box

• Sand paper 2 (pcs)

• Rings 2 (Pcs)

​
